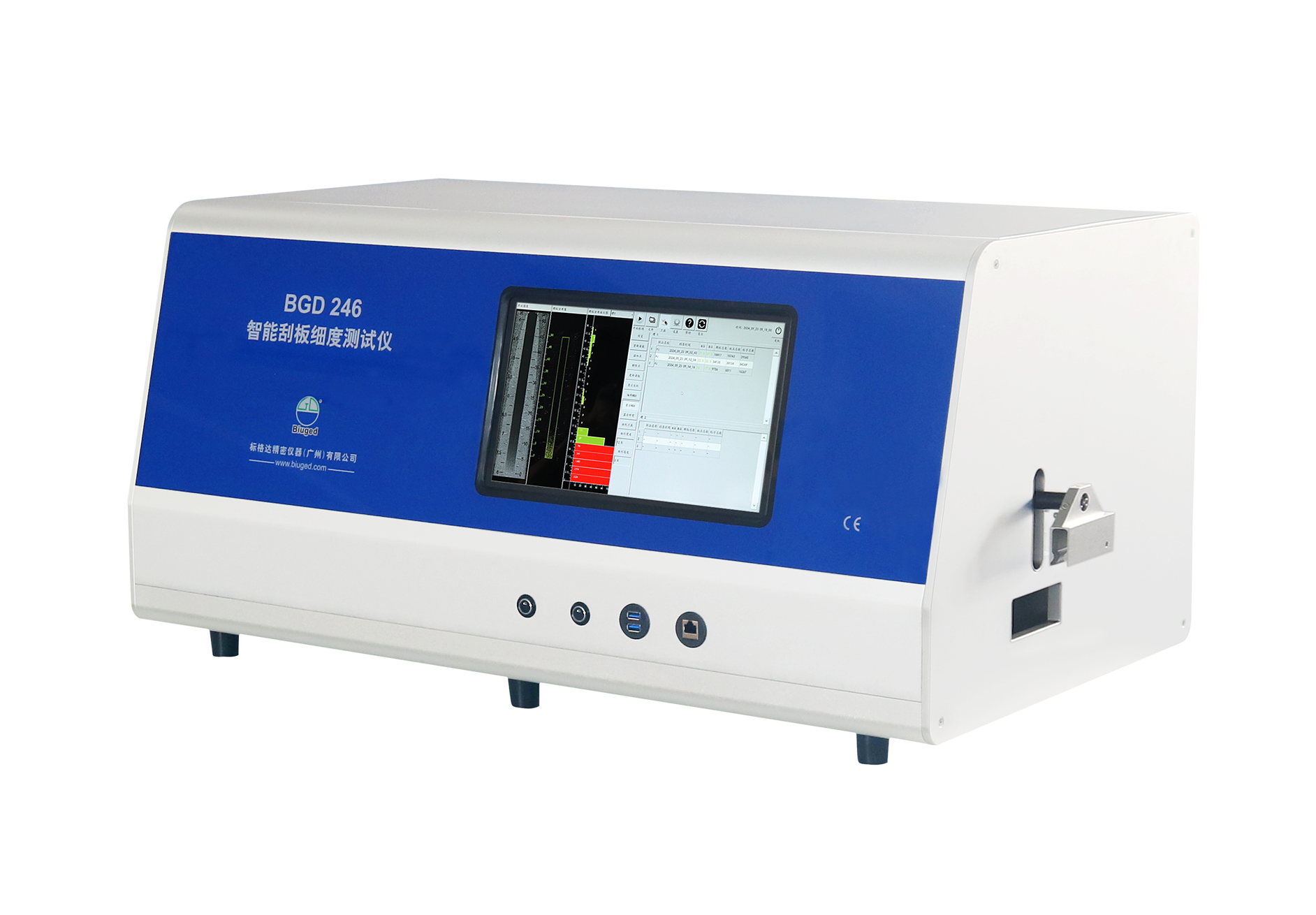

Automatic Fineness of Grind Gauge The results of fineness of grind can vary by operator. One reason for this is that the power and speed are different when using the scraper to drawdown the sample, also, there are always some subjective factors in judging particle number and distribution, especially when giving a testing result in 5 seconds or for small range gauges. This instrument can not only automatically complete the standard scraping of the sample on the groove of the instrument, but also immediately takes and saves pictures of the sample particles in the groove. And, according to the regulations of the result reading of the relevant standards, it can automatically identify the scraper fineness value of the sample within 5 seconds, and display the statistical chart of particle distribution. The instrument can adapt to different specifications, types and sizes of fineness of grind gauges, and it is equipped with a MODBUS TCP/RTU communication port.
Automatic Fineness of Grind Gauge
Automatic Fineness of Grind Gauge
This innovative instrument gives accurate, reliable and repeatable results. This instrument can not only automatically complete the standard scraping of the sample on the groove of the instrument, but also immediately takes and saves pictures of the sample particles in the groove. And, according to the regulations of the result reading of the relevant standards, it can automatically identify the scraper fineness value of the sample within 5 seconds, and display the statistical chart of particle distribution.
Automatic Fineness of Grind Gauge - Ref: T01-700410
Total:
Each:
Each:
Delivery confirmation on order
Measuring Range: 0~200μm （corresponding to a variety of scrapers, including 0~25μm, 0~50μm, etc., and the maximum is 0~200μm） Scraping Speed：50mm/s~150mm/s (adjustable) Measuring Accuracy：±5% Minimum Particle Resolution： 5μm~10μm Single Testing Time: ＜ 2 min.
There are no documents listed for this product
No videos are available
