Five model sizes:
- 450 Ltr (15.8 cu ft)
- 1000 Ltr (35.3 cu ft)
- 1300 Ltr (45.9 cu ft)
- 2000 Ltr (70.6 cu ft)
- 2600 Ltr (91.8 cu ft)
Extensive optional testing facilities:
- Extensive range optional testing facilities, such as refrigeration and liquid immersion
Ascott CYCLIC CORROSION test chambers feature:
- Low loading threshold for ergonomic loading and unloading.
- ‘Easy Open’ pneumatically operated canopy, with safety interlock.
- Dry seal gasket to prevent wetting the operator’s clothes.
- Timed canopy lock and automatic purge of the cabinet interior with fresh air after testing and before the chamber is opened.
- Easily accessible salt spray atomizer(s) in transparent hard-wearing acrylic, for ease of maintenance.
- External portable salt solution tank for ease of cleaning. 73L for 450L Chambers and 90L for 1000L Chambers and above.
- Central viewing window for unimpeded visual access to chamber interior and test material.
- Base castors and fork integrated lift lift truck runners, for ease of transportation.
- Choice of canopy colour.
- Calibration certificate.
- Consumables spares kit.
- Fallout Measuring Kit
- Intuitive 7” full colour touch-screen controller, employing the latest version of our highly intuitive operating software, for ease of programming and use.
- The operating software has a very large capacity memory for 254 multi-step cyclic programmes, 200 sub programmes and 254 single step/single set point programmes can be created and stored in the controller’s system memory, so that the widest possible range of test profiles can be accommodated.
- The icon based control interface offers a variety of languages built-in for ease of understanding and use.
- RJ45 communications port enabling the chamber to be wired or wireless connection to a local area network (LAN) for logging and remote programming via a computer running optional software.
- A real-time, user configurable ‘clock’ to enable different test samples to be batched and have their exposure time monitored separately, with alarms to warn when a pre-set test period has been completed
- Ascott’s Cyclic Corrosion Chamber advanced control system gives great flexibility. The customer can comply to a wide range of different cyclic corrosion test specifications, due to the extensive range of accessories that can be added to a chamber. As standard they come with the ability to create 5 distinct functions to create the most common corrosive environment:
- Salt Spray Fog
- Condensation humidity (wetting)
- Air drying

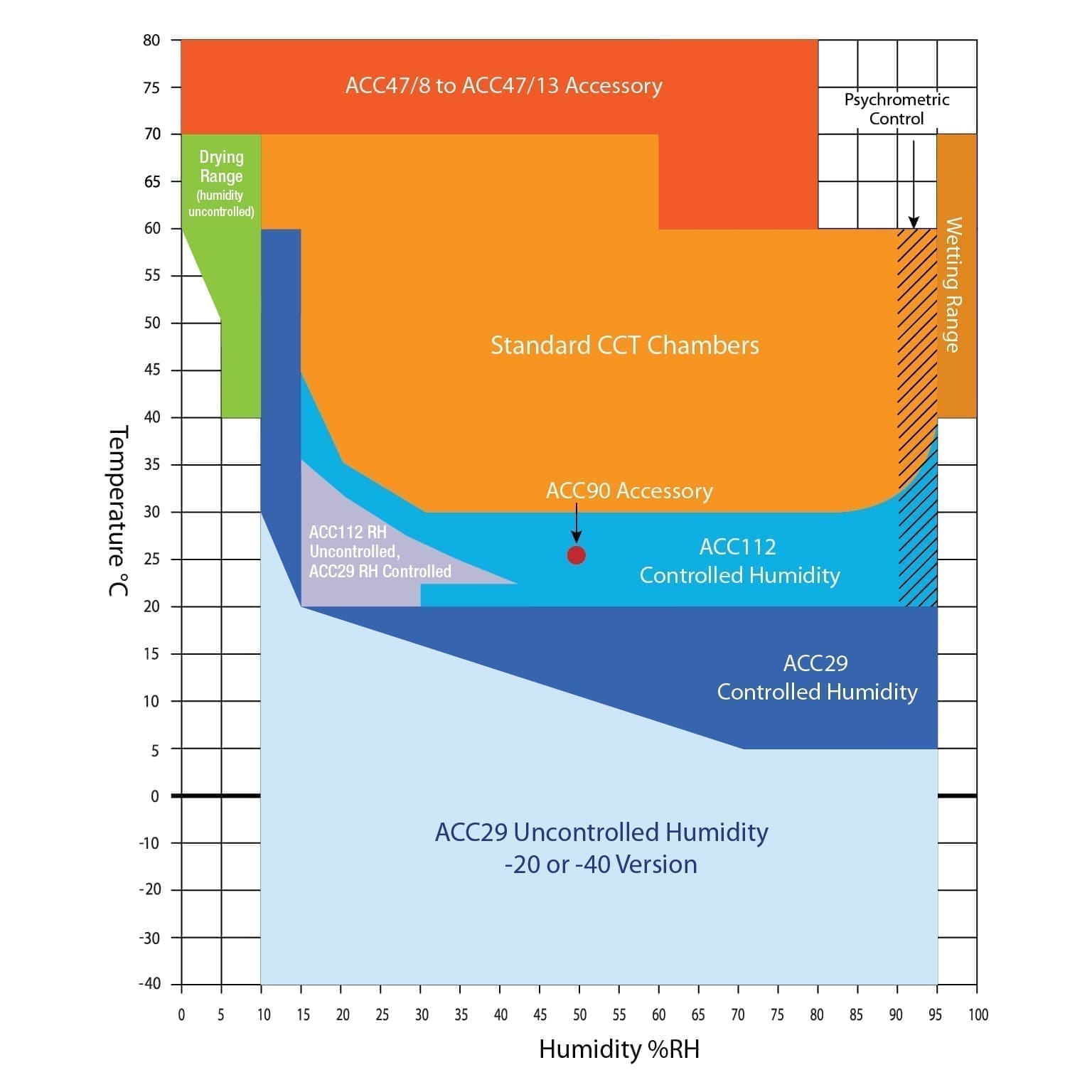

- Controlled humidity (see adjacent graph)
- Ambient Drying
- All may be programmed, using the intuitive full Colour 7” HD Touchscreen interface, to occur in any sequence and can be repeated automatically.
- Standard control features for the Ascott Cyclic Corrosion chamber:
- 7’’ ‘touch’ activated screen, with a 480p (0.38 megapixel) high resolution display, and a ‘menu’ driven icon based commands, available in multiple languages for ease of understanding and use.
- Temperature and Humidity monitoring in SCADA using OPC-UA. (Open Platform Communications United Architecture)
- Large capacity memory, allowing for extensive customer programs to be stored, 254 main programs of up to 200 steps, 100 sub programmes and 254 single line programs.
- RJ45 communications port for connection to a local area network (LAN) for logging and remote programming via a computer running optional Ascott software (ACC121).
- A real-time, user configurable ‘clock’ to enable different test samples to have their exposure time monitored separately, with alarms to warn when preset test times have been completed
