Solvent Rub Resistance Tester ASTM D4752,NCCA11-18

Ref: T01-700720

Solvent Rub Resistance Tester - Ref: T01-700720


Delivery confirmation on order

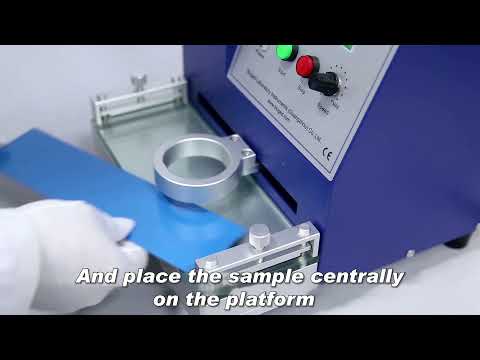

The Solvent Rub Resistance Tester T01-700720 is used for a Solvent Rub Test, usually using methyl ethyl ketone (MEK) as the solvent. The MEK resistance or degree of cure applies to paint topcoats and primers. The test is used widely in the paint industry because it provides a quick relative estimation of degree of cure without having to wait for long-term exposure results In accordance with ASTM D 4752 and NCCA11-18 Testing parameters can be quickly and easily set via the simple control system.  To see the instrument being demonstrated please click on the "Video" tab Supplied with full instructions

  • Relevant Standards: ASTM D 4752 and NCCA11-18 (Test Method for Measuring MEK Resistance of Ethyl Silicate (Inorganic) Zinc-Rich Primers by Solvent Rub )
  • Micro-computer control- LCD displays data and allows you to set parameters
  • Motor Power: 60W 220V 50Hz
  • Rubbing weight: 1000±10 g
  • Rubbing speed: 5-95/min (stepless speed regulation)
  • Rubbing head diameter: 14±0.5 mm (area is 1cm2)
  • Rubbing Distance: 120mm (also can be customized)
  • Rubbing times: 0~9999
  • Overall dimensions: 270×310×340mm (L x W x H)
  • Weight: 15Kg
