Automatic Cupping TesterAutomatic Cupping Tester

Automatic Cupping Tester

Automatic Cupping Tester for accurate and reliable punch speed

Relevant Standards: ISO 1520, BS 3900 Part 4, DIN 53166, DIN 53233

Ref: T01-700166

Automatic Cupping Tester - Ref: T01-700166

£4500
Total:
Each:

Delivery 1-2 weeks

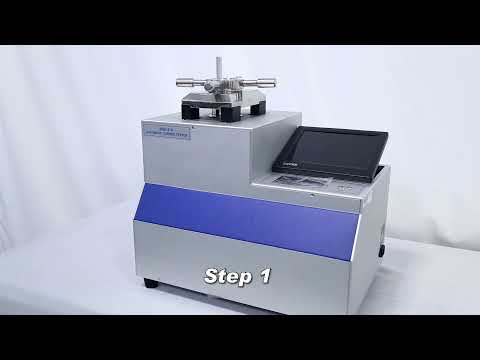

The punch on this Automatic Cupping Tester can rise automatically at the speed of 0.2mm/s as required by some standards. This eliminates errors caused by hand lifting. In addition, it has a high-definition screen, showing clearly the damage (cracking) from tested samples, making it easier to read and judge test results. Full instruction manual supplied.  To view a demonstration of the Automatic Cupping Tester , click on the "Video" tab

  • Relevant Standards: ISO 1520, BS 3900 Part 4, DIN 53166, DIN 53233
  • Automatic punch lift(Constant speed: 0.2mm/s)
  • Automatic coordinate positioning system: memorises home position after being zeroed and locates the punch position automatically
  • High-power magnifier and high definition screen
  • Lifting distance of punch can be set from 0~18mm
  • High precision raster displacement sensor - accurate and precise ±0.01mm
  • Max. width of test panel = 90mm
  • Diameter of punch: 20mm (0.8 inch)
  • Maximum dent depth: 18mm
  • Maximum depress power: 2500N
  • Precision of dent: 0.01mm

  • Relevant Standards: ISO 1520, BS 3900 Part 4, DIN 53166, DIN 53233
  • Automatic punch lift(Constant speed: 0.2mm/s)
  • Automatic coordinate positioning system: memorises home position after being zeroed and locates the punch position automatically
  • High-power magnifier and high definition screen
  • Lifting distance of punch can be set from 0~18mm
  • High precision raster displacement sensor - accurate and precise ±0.01mm
  • Max. width of test panel = 90mm
  • Diameter of punch: 20mm (0.8 inch)
  • Maximum dent depth: 18mm
  • Maximum depress power: 2500N
  • Precision of dent: 0.01mm
  • Suitable thickness of test panel: 0.03mm-1.25mm
  • Weight: 20Kg
  • Dimensions: 230×300×280mm (L×W×H)
